How to assemble Hand Sanitizer Dispenser Stand

How to assemble Hand Sanitizer Dispenser Stand

First, check all components are complete:
  1. 1 Sanitizer dispenser
  2. 1 Base
  3. 1 Pole
  4. 1 Drip tray
  5. 1 Black plate
  6. 1 Set of instructions
  7. 1 bag of Tools and accessories

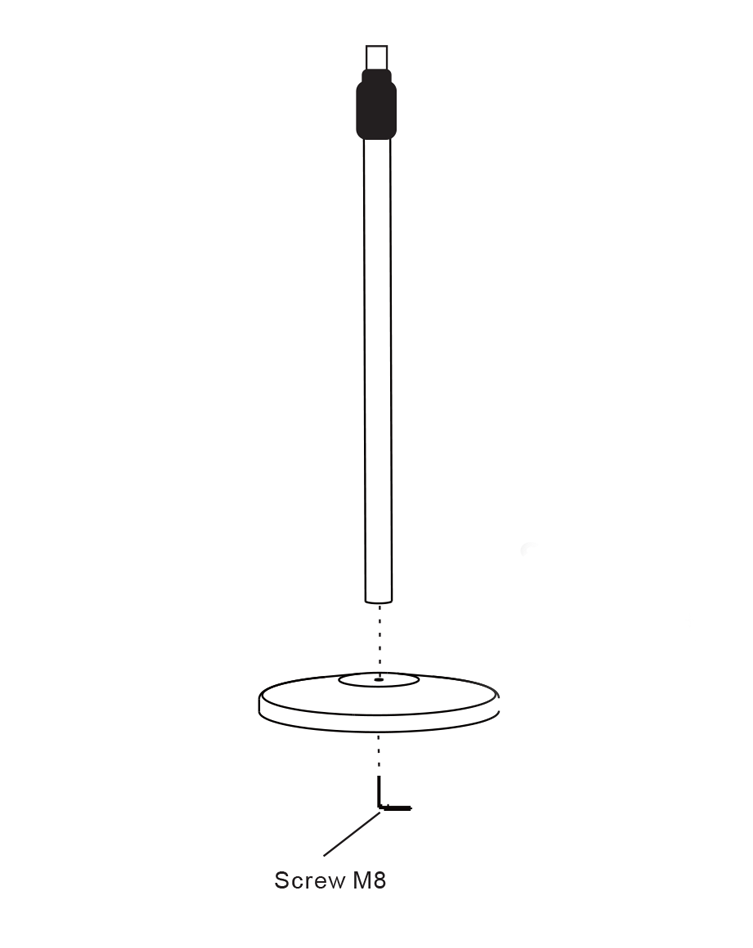

1. Connect the pole to the base with screw M8 and tighten the screw.

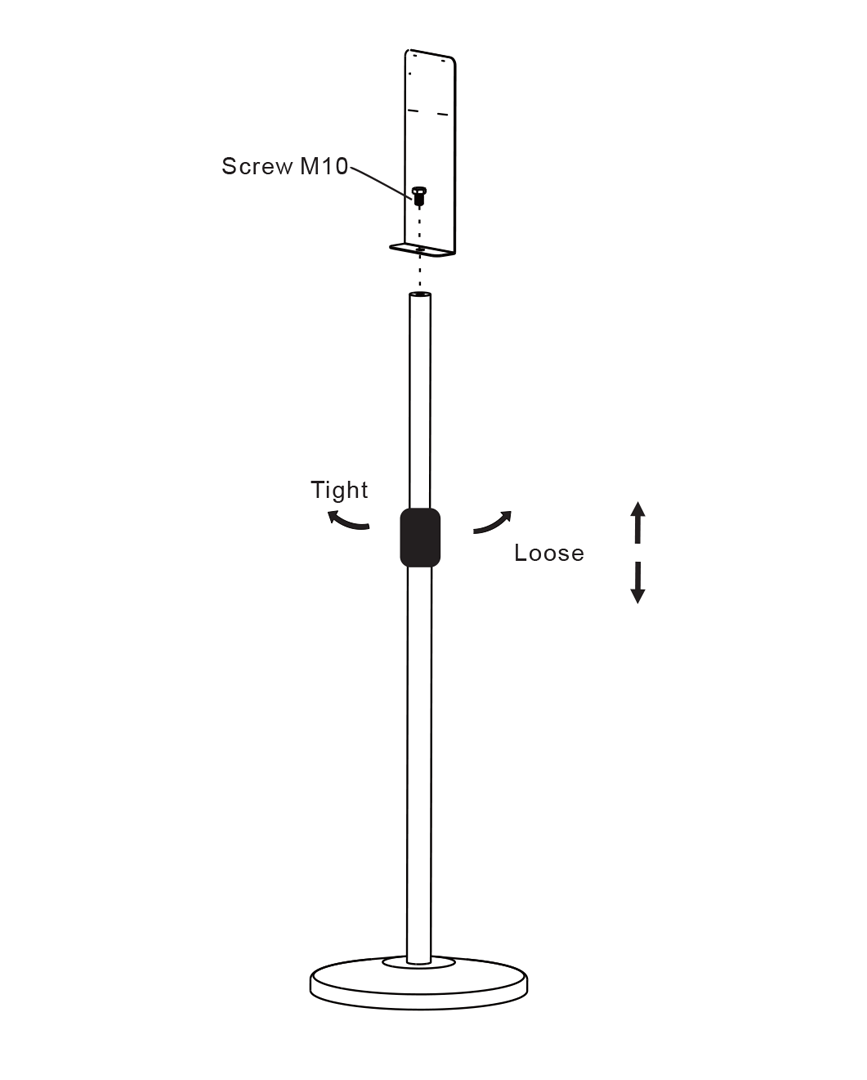

2. Connect the black plate to the pole with the screw M10 and tighten the screw.

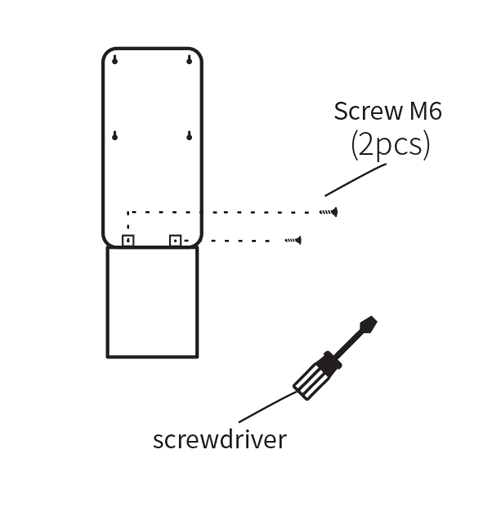

3. Fix the drip tray to the dispenser with the screw M6.

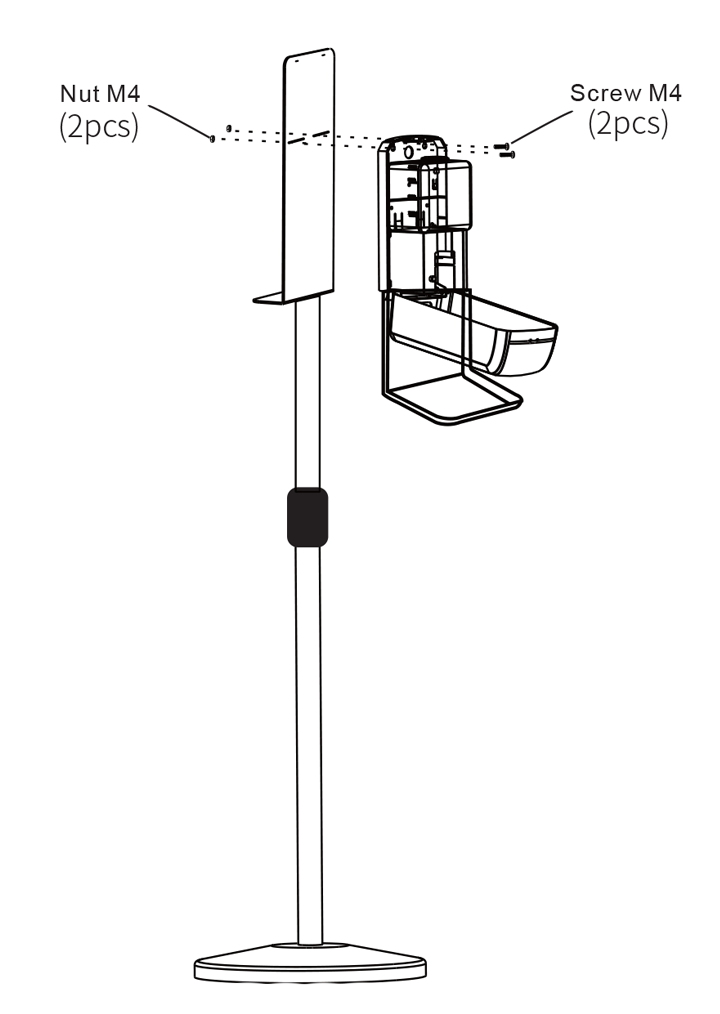

4. Install the dispenser onto the black plate with M4 nuts.


5. Tighten the screws to finish.
